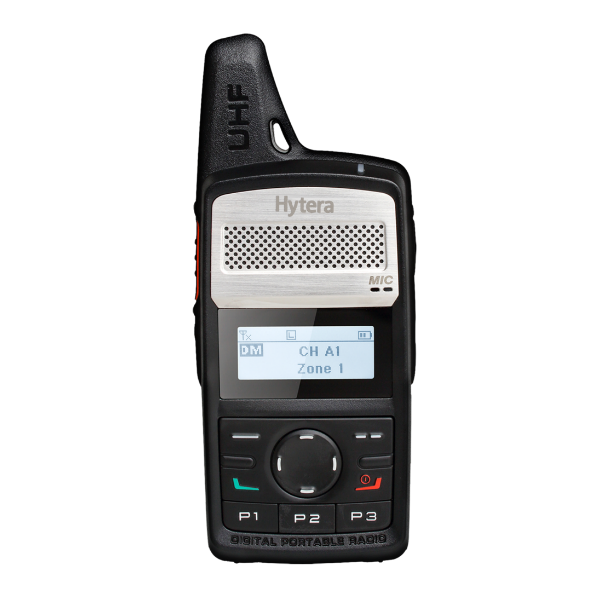

Hytera PD362i DMR Digital Portable Two Way Radio
The PD362i from Hytera is a business radio in pocket format. The compact design and intuitive operation make this DMR portable your companion for reliable digital radio communication. The Hytera PD362i is an open-standard DMR radio capable of providing quality voice communication in a small pocket-sized design approved for IP54 and MIL-STD 810 testing. The 2000 mAh long-lasting battery yields approximately 12 hours under a 5-5-90 duty cycle in digital mode. This is the ideal radio solution for small organizations looking for a cost-effective way to migrate to clear digital communication.
Standard Package Includes:
- Battery (2000mAh Li-Ion)
- Micro USB Charger
- Antenna
- Belt Clip
- Wrist Strap
- User Guide
Features
Pocket Size Design
The color display allows good visibility even under extremely strong light. The compact antenna design and light weight PC & Metal frame design. The P362i is 4.84 x 2.17 x 0.91 inches weighing 5.64oz.

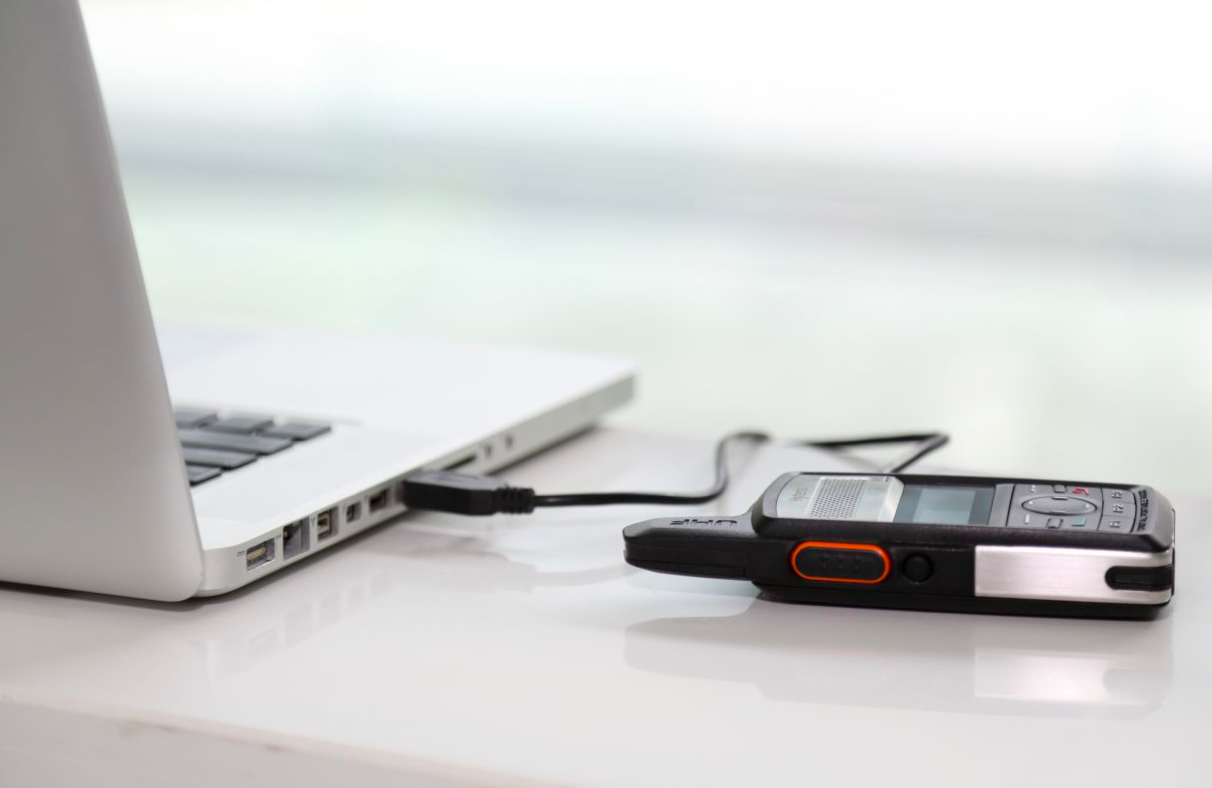

Micro USB Port
The Micro USB port allows you to use a standard USB to Micro USB to charge the radio.
Compact Antenna
The creative and compact antenna design makes the PD362i sleek and gives it a cellular phone feel.
Mixed Mode: Analog & Digital
Mixed mode (analog & digital) operation ensures a smooth analog to digital migration. May require updated firmware and hardware.
One Touch Call/Text
Supports One Touch features that are comprised of Preprogrammed Text Messages, Voice Calls, and Supplementary Features.
Scan
Capable of scanning pure analog voice and signaling pure Digital voice and data, and also mix mode scan that is comprised of Analog and Digital activities.
Versatile Voice Calls
Intelligent signaling supports various voice call types, including Private Calls, Group calls, All calls, and Emergency calls.
Various Analog Signaling Types
Various analog signaling types various squelch control types (CTCSS/CDCSS), thus providing higher function expansion capacity to the analog world.
Monochrome Display
Two-line display with monochrome color and supports messaging with up to 64 characters.
Wireless Charging
Requires wireless battery cover, hardware, and updated firmware
Radio Check (Decode Only)
May require a firmware upgrade
Quick Text
Up to 10 pre-programmed messages via CPS Software
Roaming
May require new hardware and firmware
Emergency
May require new hardware and firmware
Programming - Radios are programmable and will require programming to work with an existing system. Software and programming cables are not included with the radio and must be purchased separately.
Do I need an FCC License - FCC licenses are required for many business radio frequencies. The biggest advantage to licensing your frequencies is exclusivity. Using common or default frequencies often means dealing with interference from others nearby who are using the same frequencies. We can help with the FCC application process.
* indicates functions available in a later version.
Specifications
- Frequency Range
- UHF: 400-440MHz UHF: 430-470MHz
- Channel Capacity
- 256 (16 zones with 16 channels per zone)
- Digital Protocol
- ETSI-TS102 361-1,2 & 3
- Battery Life (5-5-90 Duty Cycle)
- 2000mAh, Analog 10h, Digital 12h
- Dimensions (W×H×D)
- 3.9” × 1.9” × 1”, 106 x 54 x 23mm
- Weight
- 4.8 oz, 160g
- Display
- 3 line monochrome
- Keypad
- Partial Keypad
- Programmable Buttons
- 4
Environmental Specifications
- Dust & Water Intrusion
- IP54 Standard
